Magnetic Embroidery Hoops: Do You Need One, and Which Fits

A magnetic hoop solves one problem: getting fabric into the frame. It does that very well. It does not make your machine stitch anything it could not stitch before, and on a home machine it can cost a large share of what the machine did. That is the whole decision, and the rest of this guide is the detail behind it.

What a magnetic hoop changes

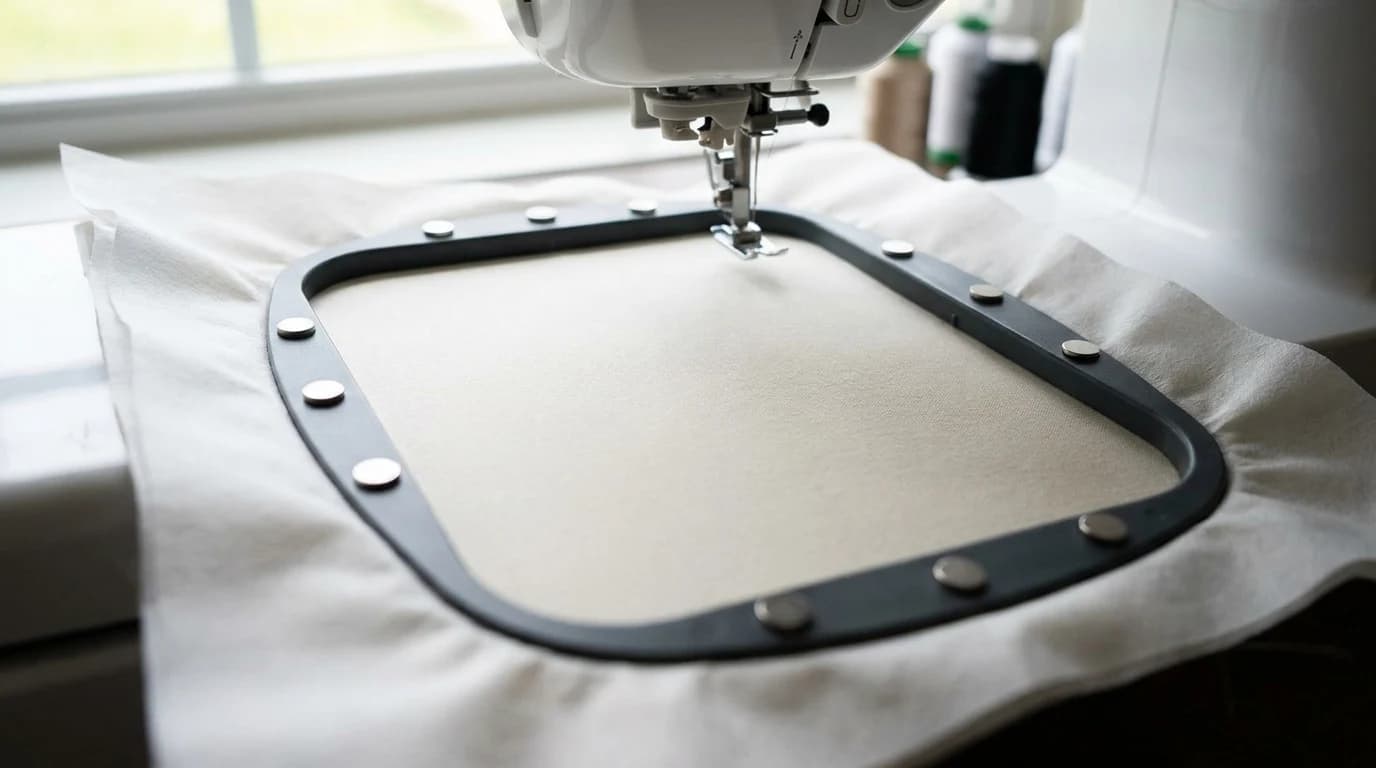

A standard machine hoop is two rings: you press the inner one into the outer one and tighten a screw. A magnetic hoop is a metal bottom frame that clips onto the embroidery arm and a flat magnetic top that snaps down onto it.

What the makers say that buys you:

• No screw to set. Mighty Hoop says its hoops hold with magnetic force and adjust for different thicknesses on their own.
• Less hoop burn and less strain. The same Mighty Hoop page says even thick garments need very little pressure, which reduces hoop burn and stress on arms and wrists.
• Faster re-hooping. Baby Lock's 5x7 magnetic frame pitches it for repositioning fabric across multiple hoopings.
• Gentler on delicate surfaces. Bernina recommends its large magnetic hoop for velvet, leather and vinyl, holding them without pressure marks.

What it does not change

The stitch area belongs to the machine. Brother says this directly in its note on hoop size and maximum embroidery space: the maximum is the largest pattern the machine can stitch at once, and hoop size does not affect it. A 4x4 machine with a bigger magnetic frame is still a 4x4 machine.

Some magnetic frames give you less than your machine's full field:

• Brother's SAMF180N is a 4x7 frame sold for 5x7-field machines.
• DIME's own compatibility chart notes that magnets narrow the field of its 7x12 hoop by 10mm compared with a standard hoop.

Read the stitch area on the product page, not the frame's outside size.

You still need stabilizer. Brother's own magnetic frame guide says so in as many words. The magnet holds the layers; it does not stop thousands of stitches pulling the fabric. The stabilizer guide covers which one.

Thick is relative. Brother rates its home magnetic frames for material up to 2mm thick. A plush bath towel is not automatically a candidate.

Which magnetic hoops fit common home machines

Fit is set by the frame's attachment to your machine's arm, not by the size printed on the box. DIME proves it with two 5x7 hoops at the same price that fit different Brother machines. This table is from the manufacturers' own compatibility lists, read in October 2026.

Sources: Brother's SAMFM100, SAMF180N and SAMF180 pages; DIME's LM6 and LM1 pages, now sold through OESD; Baby Lock's 5x7 page; and Janome Australia's Memory Craft 500E listing.

Two cautions before you order:

• Brother lists different models in different countries. Brother Canada's SAMFM100 page names other machines than the US page. Use your own country's list.
• Mighty Hoop is not for flatbed home machines. Its Brother page says its hoops fit only 6- and 10-needle machines.

If you own the Brother SE700 or Brother PE545, the 4x4 SAMFM100 is the one Brother itself lists. Its product page showed ambiguous stock wording when we read it, so confirm it is actually available.

What they cost, and when that is worth it

On the manufacturers' own pages in October 2026, Brother listed the 4x4 SAMFM100 at $301.99 and the 4x7 SAMF180N at $362.99. DIME's 5x7 Snap Hoop Monster listed at $239.99, on sale at $191.99. Baby Lock's 5x7 listed at $406.

That is real money next to the price of a 4x4 embroidery machine. So the honest test is whether hooping is the thing holding you back.

That last row is not a guess. HoopMaster's blue clip guide warns that thin shirts, delicate fabrics and stretchy materials can make the hoop snap together and shift the garment.

If you are weighing this for selling embroidery, read embroidery machine for a small business first. Repeat orders are where the time saved adds up.

Gear mentioned above

What we'd buy for this

One pick per category, chosen from the research pages linked in this piece. Borrow before you buy — nothing here is required to start.

•
  Embroidery Machines

  Brother SE700$579.99★ 5 out of 5 stars · 1,011 ratings

  Doing both jobs on one machine — a 4 by 4 inch embroidery field, 135 built-in designs, 103 sewing stitches and a colour touchscreen, with designs arriving over wireless LAN instead of a USB stick.

  Why this oneBuy on Amazon

Researched from listings, specs and owner feedback — never hands-on testing. We may earn a commission; it never changes a pick.

Safety: these are not fridge magnets

Every maker publishes warnings, and they are worth reading before the box is opened.

• Pacemakers and implanted devices. Brother's PR magnetic frame manual says not to use the frame if you have a pacemaker. HoopMaster's safety page asks anyone with a medical device to check with their physician and the device maker.
• Pinched fingers. Bernina's magnetic hoop manual tells you to hold the top frame at a corner recess. HoopMaster warns that the parts can jump and snap together from a surprising distance.
• Electronics and cards. Brother says to keep the magnets away from precision electronics and magnetic-stripe cards. HoopMaster gives 24 inches from magnetic media.
• Your work area. HoopMaster says to keep scissors, pins and other metal items out of the way, and Bernina says to keep the hoop out of children's reach.
• Take it off the arm. Brother's manual says to remove the frame from the machine before attaching or removing fabric.

If you buy one

Hoop the stabilizer with the fabric, exactly as you would in a standard hoop. Brother's hooping guide asks for fabric and stabilizer to overhang the bottom frame by at least 5cm on every side. Then stitch a test on scrap, as machine embroidery for beginners recommends for every new setup. A new hoop is a new setup.
